Overview
The VE809 HDMI Wireless Extender extends your HDMI display up to 30 m* from the HDMI source using wireless technology. Easily connect two HDMI devices to an HDTV wirelessly with crystal clear image quality capable of streaming Full 1080p with 5.1 channel digital audio and 3D technology. The IR remote control allows you to switch between HDMI source devices from the receiver side, remotely; and allows you to watch a local and wirelessly connected HDTV- simultaneously. The VE809 consists of a wireless audio/ video transmitter and receiver. Consolidate your HDMI electronics and use the VE809 as a wireless 2-port HDMI switch to connect remote devices such as Blu-ray players and HD Cable boxes to design your own custom wireless entertainment space.

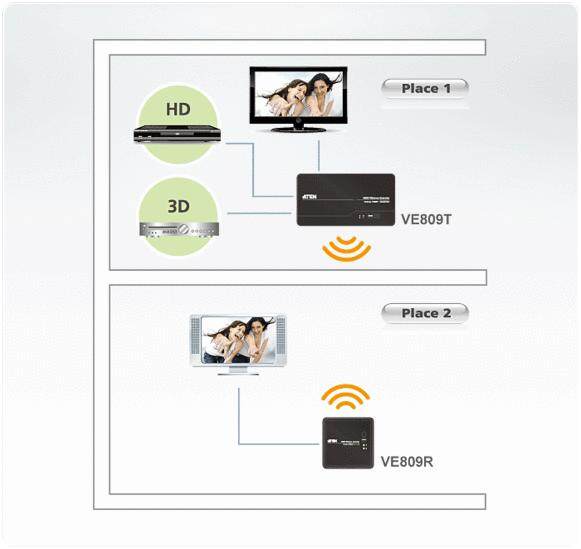

Diagram
| Function | VE809R | VE809T |
| Video Input | ||
| Interfaces | N/A | 2 x HDMI Type A Female (Black) |
| Impedance | N/A | 100 Ω |
| Max. Distance | N/A | 3 m (2L-7D03H) |
| Video Output | ||
| Interfaces | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω | 100 Ω |
| Max. Distance | 3 m (2L-7D03H) | 3 m (2L-7D03H) |
| Video | ||
| Max. Data Rate | 6.75 Gbps (2.25 Gbps Per Lane) | 6.75 Gbps (2.25 Gbps Per Lane) |
| Max. Pixel Clock | 225 MHz | 225 MHz |
| Compliance | HDMI (3D) HDCP Compatible | HDMI (3D) HDCP Compatible |
| Max. Resolutions / Distance | Up to 1080p@30m | Up to 1080p@30m |
| Audio | ||
| Input | N/A | 2 x HDMI Type A Female (Black) |
| Output | 1 x HDMI Type A Female (Black) | 1 x HDMI Type A Female (Black) |
| Power Consumption | DC5V:6.58W:31BTU | DC5V:7.84W:37BTU |
| Environmental | ||
| Operating Temperature | 0 – 40°C | 0 – 40°C |
| Storage Temperature | -20 – 60°C | -20 – 60°C |
| Humidity | 0 – 80% RH, Non-Condensing | 0 – 80% RH, Non-Condensing |
| Physical Properties | ||
| Housing | Plastic | Plastic |
| Weight | 0.12 kg ( 0.28 lb ) | 0.20 kg ( 0.45 lb ) |
| Dimensions (L x W x H) | 9.50 x 9.50 x 3.15 cm (3.74 x 3.74 x 1.24 in.) | 18.20 x 9.65 x 3.15 cm (7.17 x 3.8 x 1.24 in.) |
| Control | ||
| IR | 1 x 2.5mm Mini Stereo Jack Female (Black) | 1 x 2.5mm Mini Stereo Jack Female (Black) |
| Connector | ||
| Power | 1 x DC Jack (Mini USB) | 1 x DC Jack |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
Features
- Wirelessly extend an HDMI display up to 30 m from the HDMI source*
- Setup two HDTVs and view HD content on two HDTVs simultaneously*
- Uncompressed full HD 1080p video wireless transmission
- Connect and transmit wireless video content from your Bluray DVD player, HD Cable box or other HDMI device wirelessly
- Wireless 3D Supported
- Wireless HD in Full 1080p
- Supports audio formats – digital audio LPCM 7.1 channels, Dolby Digital and DTS Digital 5.1 channels
- Superior video quality – 480p, 720p, 1080i and 1080p
- Keep home theatre electronic devices neatly out-of-sight
- Built-in IR receiver allows control of source devices from the remote side
- No software or driver installation needed
- HDCP compatible
- Based on WHDI™ Technology – Low latency < 1ms* Distance may vary depending on environment; solid objects such as steel, concrete and brick may view shorter distances.
Package Contents
1x VE809T HDMI Wireless Extender
1x VE809R HDMI Wireless Extender
1x IR Remote Control
1x IR Blaster Cable 1x HDMI Cable (1.5m/5ft) 1x Mini USB Power Adapter (VE809R) 1x Power Adapter (VE809T) 2x AAA Batteries 1x User Instructions
